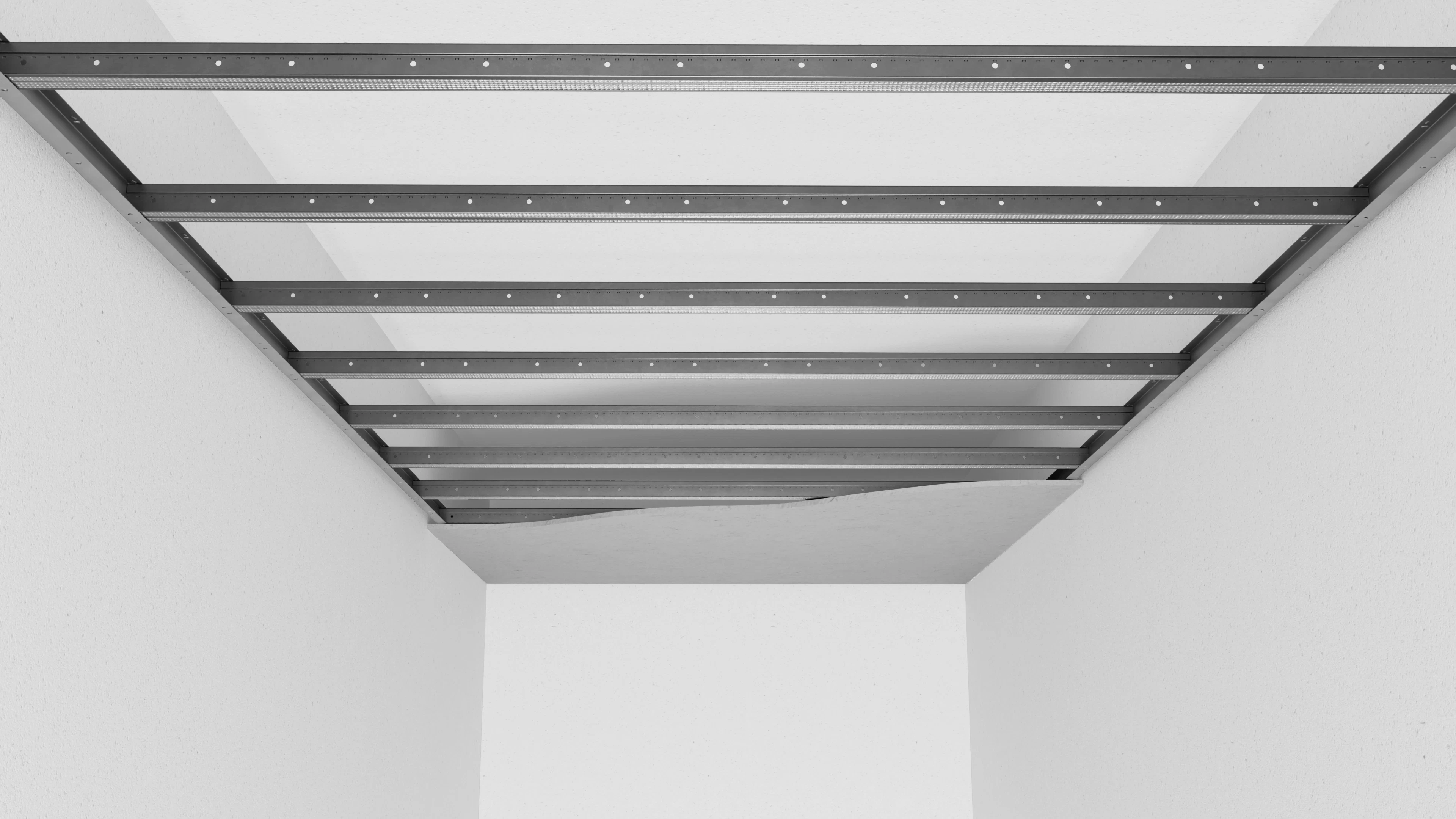

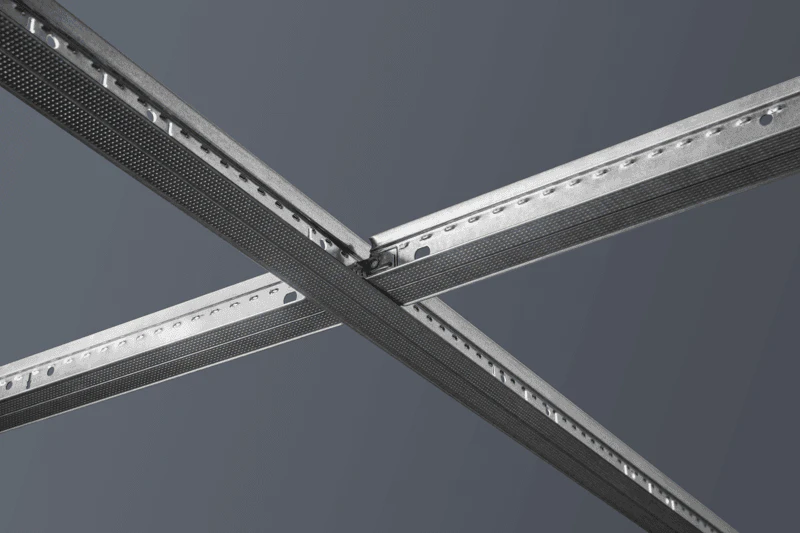

Chicago Metallic® Drywall Grid

The latest innovation in Rockfon's Drywall Grid product is here! New product upgrades provide easier, faster, consistent, high-quality installation and that contributes to greater overall performance.  

Back
Back

Product Performance

Load Bearing Expand to view deflection table
 Component Load Test Data and Material
Main Tee Length Allowable Load per ASTM C635
Hanger Spacing
4' 6'
Furring Tees Length
Cross Tee Length
Furring Channel Length
1274.01Z 48" 17.0
634.00C 48" 8.2
640.00C 144" HD
644.00C 48" 14.3
650.00C 144" HD
654.00C 48" 14.3
664.00C 48" 14.3
674.00C 48" 14.3
677.00C 72" 5.24

To convert data into lb/ft2, divide on center spacing of component into lb/ft.
Note: 677 has an allowable load of 7.61 based on L/240 span deflection.

 Membrane Loading
Component Combination MR/CT
Hanger Wire / Cross tee Spacing
48"/24" 32"/16"
640.00C / 644.00C 6.9 10.4
640.00C / 644.00C / 1274.01H 5.5 6.2
640.00C / 664.00C 6.9 10.4
640.00C / 664.00C / 1274.01H 5.5 6.2
640.00C / 677.00C 2.62 3.93
650.00C / 654.00C 6.6 7.7
650.00C / 654.00C / 1274.01Z 5.5 6.2
650.00C / 674.00C 6.6 7.7
650.00C / 674.00C / 1274.01Z 5.5 6.2
650.00C/677.00C 2.62 3.93

Membrane loading is not applicable when these components are used in a fire rated assembly. Consult UL Fire Resistance ​Directory for installation details.

Fire Rated Assemblies Hanger Positions for Fire Rated Situations
This illustrates hanger positions for single fixtures in a field and are covered in the table. Refer to specific design numbers for allowable number of fixtures per square footage of ceiling area.
Non-Fire Rated Assemblies Hanger Positions for Non-Fire Rated Situations
This illustrates hanger positions for single fixtures in a field. Provide extra hangers for tandem fixtures.
Environment Materials and Resources (MR)
-Waste Management Planning
-Interiors Life Cycle Impact Reduction
-Environmental Product Declarations
-Sourcing of Raw Materials
-Material Ingredients
-Waste Management
Indoor Environmental Quality (EQ)
-Low-Emitting Materials
-Interior Lighting
-Acoustic Performance
Back
 Component Load Test Data and Material
Main Tee Length Allowable Load per ASTM C635
Hanger Spacing
4' 6'
Furring Tees Length
Cross Tee Length
Furring Channel Length
1274.01Z 48" 17.0
634.00C 48" 8.2
640.00C 144" HD
644.00C 48" 14.3
650.00C 144" HD
654.00C 48" 14.3
664.00C 48" 14.3
674.00C 48" 14.3
677.00C 72" 5.24

To convert data into lb/ft2, divide on center spacing of component into lb/ft.
Note: 677 has an allowable load of 7.61 based on L/240 span deflection.

 Membrane Loading
Component Combination MR/CT
Hanger Wire / Cross tee Spacing
48"/24" 32"/16"
640.00C / 644.00C 6.9 10.4
640.00C / 644.00C / 1274.01H 5.5 6.2
640.00C / 664.00C 6.9 10.4
640.00C / 664.00C / 1274.01H 5.5 6.2
640.00C / 677.00C 2.62 3.93
650.00C / 654.00C 6.6 7.7
650.00C / 654.00C / 1274.01Z 5.5 6.2
650.00C / 674.00C 6.6 7.7
650.00C / 674.00C / 1274.01Z 5.5 6.2
650.00C/677.00C 2.62 3.93

Membrane loading is not applicable when these components are used in a fire rated assembly. Consult UL Fire Resistance ​Directory for installation details.

Back
Back
Back

Accessories

148780_r1_ROC_GridDS_EPSFiles_SingleImages_Drywall
Back

Resources





print pdf dwg
icon
Rockfon Seismic Relief Brochure
Rockfon Seismic Relief Brochure

pdf
icon
Rockfon Seismic Relief Brochure FR
Rockfon Seismic Relief Brochure FR

pdf
icon
Rockfon Chicago Metallic Drywall Grid - Ceiling Elevation Change
Rockfon Chicago Metallic Drywall Grid - Ceiling Elevation Change

pdf
Rockfon Chicago Metallic Drywall Grid - Ceiling Elevation Change - DWG
Rockfon Chicago Metallic Drywall Grid - Ceiling Elevation Change - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Channel at Wall Detail
Rockfon Chicago Metallic Drywall Grid - Channel at Wall Detail

pdf
Rockfon Chicago Metallic Drywall Grid - Channel at Wall Detail - DWG
Rockfon Chicago Metallic Drywall Grid - Channel at Wall Detail - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Control Joint Parallel to MR
Rockfon Chicago Metallic Drywall Grid - Control Joint Parallel to MR

pdf
Rockfon Chicago Metallic Drywall Grid - Control Joint Parallel to MR - DWG
Rockfon Chicago Metallic Drywall Grid - Control Joint Parallel to MR - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Control Joint Perpendicular to MR
Rockfon Chicago Metallic Drywall Grid - Control Joint Perpendicular to MR

pdf
Rockfon Chicago Metallic Drywall Grid - Control Joint Perpendicular to MR - DWG
Rockfon Chicago Metallic Drywall Grid - Control Joint Perpendicular to MR - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Cross Section Through CT
Rockfon Chicago Metallic Drywall Grid - Cross Section Through CT

pdf
Rockfon Chicago Metallic Drywall Grid - Cross Section Through CT - DWG
Rockfon Chicago Metallic Drywall Grid - Cross Section Through CT - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Downlight Detail
Rockfon Chicago Metallic Drywall Grid - Downlight Detail

pdf
Rockfon Chicago Metallic Drywall Grid - Downlight Detail - DWG
Rockfon Chicago Metallic Drywall Grid - Downlight Detail - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Drywall to ACT Transition
Rockfon Chicago Metallic Drywall Grid - Drywall to ACT Transition

pdf
Rockfon Chicago Metallic Drywall Grid - Drywall to ACT Transition - DWG
Rockfon Chicago Metallic Drywall Grid - Drywall to ACT Transition - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Fire Sprinkler Detail
Rockfon Chicago Metallic Drywall Grid - Fire Sprinkler Detail

pdf
Rockfon Chicago Metallic Drywall Grid - Fire Sprinkler Detail - DWG
Rockfon Chicago Metallic Drywall Grid - Fire Sprinkler Detail - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - GRG Access Door
Rockfon Chicago Metallic Drywall Grid - GRG Access Door

pdf
Rockfon Chicago Metallic Drywall Grid - GRG Access Door - DWG
Rockfon Chicago Metallic Drywall Grid - GRG Access Door - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Infinity D Connection
Rockfon Chicago Metallic Drywall Grid - Infinity D Connection

pdf
Rockfon Chicago Metallic Drywall Grid - Infinity D Connection - DWG
Rockfon Chicago Metallic Drywall Grid - Infinity D Connection - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Light Cove Detail
Rockfon Chicago Metallic Drywall Grid - Light Cove Detail

pdf
Rockfon Chicago Metallic Drywall Grid - Light Cove Detail - DWG
Rockfon Chicago Metallic Drywall Grid - Light Cove Detail - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Soffit Detail
Rockfon Chicago Metallic Drywall Grid - Soffit Detail

pdf
Rockfon Chicago Metallic Drywall Grid - Soffit Detail - DWG
Rockfon Chicago Metallic Drywall Grid - Soffit Detail - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Vertical Transition
Rockfon Chicago Metallic Drywall Grid - Vertical Transition

pdf
Rockfon Chicago Metallic Drywall Grid - Vertical Transition - DWG
Rockfon Chicago Metallic Drywall Grid - Vertical Transition - DWG

dwg
icon
Rockfon Chicago Metallic Drywall Grid - Wall Angle Detail
Rockfon Chicago Metallic Drywall Grid - Wall Angle Detail

pdf
Rockfon Chicago Metallic Drywall Grid - Wall Angle Detail - DWG
Rockfon Chicago Metallic Drywall Grid - Wall Angle Detail - DWG

dwg
icon
EPD Steel CISCA
EPD Steel CISCA

pdf
icon
Chicago Metallic® Drywall Grid Datasheet
Chicago Metallic® Drywall Grid Datasheet

pdf
icon
Rockfon® Accessories Datasheets
Rockfon® Accessories Datasheets

pdf
icon
Rockfon Chicago Metallic Drywall Grid DataSheet FR
Rockfon Chicago Metallic Drywall Grid DataSheet FR

pdf
icon

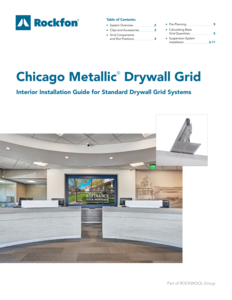

Rockfon Drywall Grid Installation
